AD589-Dual Supply LVDT Signal Conditioner Design Procedure

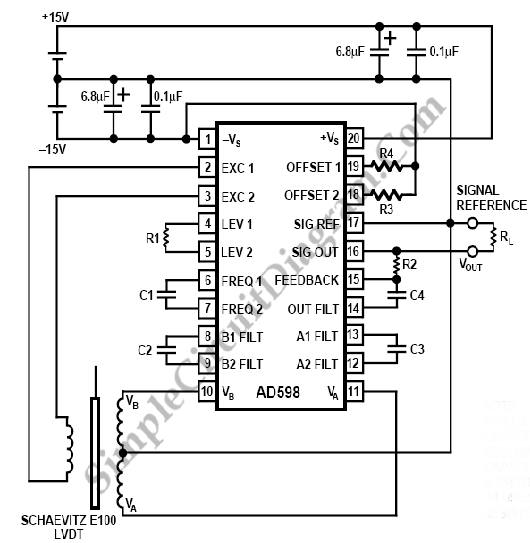

LVDT (linear voltage differential transformer) is widely used as linear position sensor.  AD589 integrated circuit provides a complete solution for LVDT signal conditioner circuit. This circuit diagram below shows the connection method with dual +- 15 volt power supplies and a Schaevitz E100 LVDT:

LVDT Signal Conditioner Design Procedure (AD589-Dual Supply)

The design procedure on how to select the proper components values is shown in the datasheet of  AD598 IC [Source: Analog Devices Datasheet]
